39000WarningLightbarSeries

39000 Warning Lightbar Series

E-Mark R65&R10 39000 Warning Lightbar Series

IMG_256

Place of Origin

china

Brand Name

ZJKJELE

Model Number

LED-39127 (LED39000 Series)

Warranty

one year

Voltage

DC12V/24V

Light source

LED

Port

Shanghai/ningbo/yiwu

Material

high-impact PC

Run Time

Continues

Ambient temperature

-40℃-+75℃

Fixed Type

screwhook

Certification

R65R10CEISO9001

Color

Red/blue/amber/white

MOQ

1

Supply Ability

1000

carton size

1320*360*180mm

Net Weight

8.3kg

Gross weight

/

QTY/CTN

1PC/CTN

Lead Time

7-15days

Power

80w

sound pressure

/

LED39000 Series

  Model

         Length(cm)

  LED-39035

  35.56cm

  LED-39059

  58.928cm

  LED-39069

  69cm

  LED-39082

  82.4cm

  LED-39103

  103cm

  LED-39106

  106.1cm

  LED-39116

  116.4cm

  LED-39127

  126.7cm

  LED-39137

  137cm

  LED-39150

  150.4cm

  LED-39164

  163.8cm

  LED-39174

  174.1cm

  LED-39184

  184.4cm

  LED-39195

  194.7cm

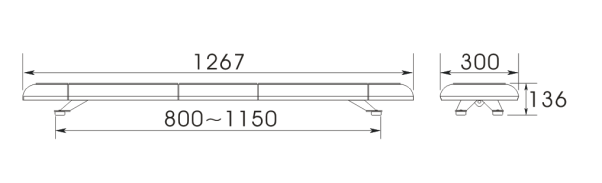

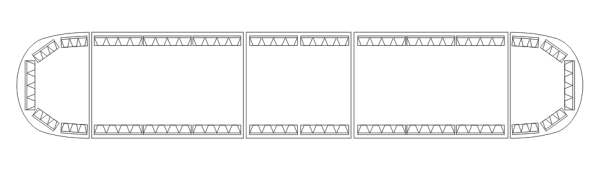

Schematic Diagram:


IMG_256

IMG_257


Customized:

·       Length customization

·       Lens color customization

Description:

·       It consists of LED module and a siren.

·       It is fixed by bolt or hook.

·       It is suitable for fire engine, police car, ambulance and truck.

·       It have acquired ECE E9 R65&R10 E-mark certification, and passed R65 Class 1 and Class2.

·       Reluar DC12V or DC24V circuit is availabe, and also dual-voltage DC9-32V circuit is optional.

·       Two special length dome(cover) can be combined into many lengths lightbar.

·       Variety of special LED bulb and optical lens to choose.

·       Energy conservation and environmental protection.
